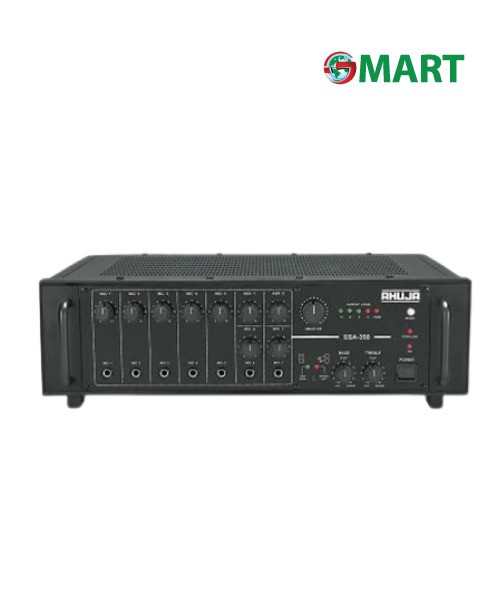

Ahuja SSA-350 PA mixer amplifier is used for connecting the input line to output from any external mixer and as a booster power amplifier for recording the programme. The PA mixer amplifier features a 450W maximum power supply, 350W RMS at 10% THD, 320W RMS at 5% THD, 300W RMS at 2% THD, ≤ 2 dB output regulation, 1kHz full load, 50 - 15000Hz ± 3dB frequency response, 60dB noise ratio, -10dB at 100Hz to 10kHz tone controls bass, 200mV / 600Ω preamp output, 1V / 1kΩ line output, 4Ω / 8Ω / 70V / 100V speaker output, 220 - 240V AC and 36V DC power required, 660VA AC and 6A DC power consumption, 480 x 160 x 360mm dimensions, 20.50Kg weight. The total channel can input 1 x mic 0.8mV / 4.7kΩ, 1 x Aux 100mV / 470kΩ, 1 x Aux 200mV / 470kΩ, 1 x line 1V / 50kΩ.
